Fujitsu S26361-K1582-V101 - PRIMERGY RX2510 M2 Serveur Rack avec processeur E5-2609v4 8C/8T extensible à deux

Chargement...Chargement...
-26%
PRIMERGY RX2510 M2 Serveur Rack PRIMERGY RX2510 M2, avec processeur E5-2609v4 8C/8T extensible à deux S26361-K1582-V101
Serveur Rack PRIMERGY RX2510 M2, avec processeur E5-2609v4 8C/8T extensible à deux, 8GB de RAM extensible à 384GB DDR4, Deux HD SAS 12G 600GB 10K 512n HOT PL 3.5' EP (extensible à 4 HD), 4 ports SATA pour RAID 0/1 6GBit/s intégré, deux alimentation 450W hot plug, Interfaces: VGA , COM1 ou COM, 1x USB 2.0, 4x USB 3.0, RJ45 for LAN, garantie 3 ans sur site

Ce produit n'est plus proposé à la vente
Disponibilité : Obsolète (Fin de vie)
Evaluation :
  • PRIMERGY RX2510 M2 Serveur Rack PRIMERGY RX2510 M2, avec processeur E5-2609v4 8C/8T extensible à deux S26361-K1582-V101
  • /images/Products/W-DK39193_tcm21-2572999_d05c6eaf-b712-4091-8452-ef0c2d2514a2.png

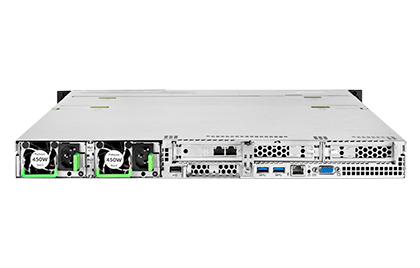

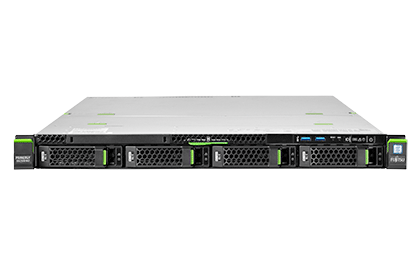

The FUJITSU Server PRIMERGY RX2510 M2 is a dual-socket rack server optimized to meet demanding requirements of service providers and hosters. Balanced dual-socket Intel® Xeon® E5-2600 v4 family processor performance, easy manageability and top energy efficiency ensure cost-efficient operation. The 1U small-size housing delivers optimal density for large scale-out installations including up to 384 GB DDR4 memory meet demands emerging in the field of web hosting, managed CRM services, shared, managed or private cloud environments, or other XaaS solutions.

- Serveur Rack PRIMERGY RX2510 M2, avec processeur E5-2609v4 8C/8T extensible à deux, - 8GB de RAM extensible à 384GB DDR4,
- Deux HD SAS 12G 600GB 10K 512n HOT PL 3.5' EP (extensible à 4 HD),
- 4 ports SATA pour RAID 0/1 6GBit/s intégré, - Deux alimentation 450W hot plug,
- Interfaces: VGA , COM1 ou COM, 1x USB 2.0, 4x USB 3.0, RJ45 for LAN,
- Garantie 3 ans sur site 5X9. ServerView Suite Software incl. - ServerView Installation Manager, Management Software und Tools.

Technical details
ChipsetIntel® C612
Mainboard typeD3279-H
Product TypeDual Socket Rack Server
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Memory8 GB - 384 GB, DIMM (DDR4)
Memory protectionAdvanced ECC, Memory Scrubbing, SDDC
Drives (optional)DVD supermulti, ultraslim, SATA I
PCI-Express 3.0 x82 x Low profile
PCI-Express 3.0 x162 x Low profile (2nd CPU required for slot 4)
Slot NotesSlot 1 (internal): PCIe Gen3 x8 @CPU1 is dedicated for the modular RAID Controller.
Slot 2: PCIe Gen3 x8 @CPU1 for low profile cards with up to 167mm length
Slot 3: PCIe Gen3 x16 @CPU1 for low profile cards with up to 167mm length
Slot 4 standard: PCIe Gen3 x16 @CPU2 for low profile cards with up to 167mm length
Slot 4 option: PCIe Gen3 x16 @CPU2 for full height cards with up to 167mm length (!in this case, slot 3 is not available)
Accessible drive bays1 x 5.25/0.5-inch for DVD-RW/Blu-ray
Optional accessible drivesAll possible options described in relevant system configurator.
Storage drive baysoptional up to 4 x 2.5-inch or 4 x 3.5-inch
4 x 3.5-inch hot-plug SAS/SATA
4 x 2.5-inch hot-plug SAS/SATA
8 x 2.5-inch hot-plug SAS/SATA
Storage drive typeHDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 4 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 500 GB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 450 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 4 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB , 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
SSD SATA, 6 Gb/s, 120 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 120 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.2 TB, Write-Intensive, hot-plug, 3.5-inch, enterprise, 10 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 800 GB, Write-Intensive, hot-plug, 3.5-inch, enterprise, 10 DWPD (drive writes per day for 5 years)
DOM SATA, 6 Gb/s, 128 GB, non hot plug, enterprise, 0.13 DWPD (Drive Writes Per Day for 5 years)
DOM SATA, 6 Gb/s, 64 GB, non hot plug, enterprise, 0.14 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.2 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.6 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 800 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1 DWPD (Drive Writes Per Day for 5 years)
I/O controller onboardAll hardware storage controller options are described under Components
LAN controllers are integrated in optional I/O units, details are described under I/O options
Integrated Remote Management Controller (iRMC S4, 256 MB attached memory incl. graphics controller), IPMI 2.0 compatible
Trusted Platform Module (TPM)Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power supply configuration1+1 hot-plug power supply
Active power (max. configuration)510 W
Weightup to 16 kg
Rack (W x D x H)483 mm (Bezel) / 435mm (Body) x 770.7 x 43 mm
Mounting Depth Rack748.2 mm
Server ManagementServer Management
StandardServerView Suite - Deploy
Installation Manager
Scripting Toolkit, ServerView Suite - Control
Operations Manager incl. PDA and ASR & R
(Prefailure and Analysis; Automatic Server Recovery and Restart)
Agents and CIM Providers / Agentless Service
System Monitor
RAID Manager
Capacity Management
Power Management
Storage Support, ServerView Suite - Maintain
Remote Management (iRMC in combination with Intel® Node Manager)
Update Management (BIOS, Firmware, Windows Drivers, Agents and CIM Providers)
Performance Measurement
Asset Management
Online Diagnostics, ServerView Suite - Integrate
Integration packs for Microsoft System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM, Deployment tools and others
OptionServerView embedded Lifecycle Management
Enhanced management functionalities for simplified, highly integrated and automated management processes, ServerView Suite - Maintain
iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, ServerView Suite - Dynamize
Virtual-IO Manager (VIOM)
Warranty period2 years
Warranty typeOnsite warranty
Service Lifecycle5 years after end of product life
