Bluenet

Bluenet BL420DE - Carte E1 a 4 port Pour Asterisk ISDN PRI Digital Interface

Chargement...Chargement...
-74%
Carte E1 a deux avec Carte Echo Canceling port Pour Asterisk ISDN PRI Digital Interface Card ZD2PE-E

Prix Normal : 25 000,00 Dh HT

Votre Prix :6 399,00 Dh HT

7 678,80 Dh TTC

Economie : 18 601,00 Dh - 74%

Carte E1 the Dual channel ISDN PRI cards with hardware for 120 calls detection connectivity to your linux machine can han. It comes with fully GPled drivers for the linux 2.4.X and 2.6.X kernels. The E1 PRI port can be configured for CPE

Disponibilité : Nous consulter sur mv.ma
Evaluation :
  • Carte E1 a deux avec Carte Echo Canceling port Pour Asterisk ISDN PRI Digital Interface Card ZD2PE-E

Digital Telephony Cards



Caractéristiques du produit

  • Nouvelle version, nos cartes de la deuxième génération numérique.
  • Soutenir CE Module avec puce Octasic CE .
  • Commutation par matériel de canal.
  • Capacité de traitement plus efficace
  • Soutien matériel HDLC.
  • Support E1/T1/J1 dans une seule carte
  • Conformité aux normes de télécommunications internationales.
  • Spécialement conçu pour la plate-forme Asterisk, disponible pour FreeSwitch, Yate et d'autres projets open source.

Points fort

Prodcut Models
  • Efficace: optimisation de la transmission et de commutation matérielle DMA.

  • Horloge: Support d'horloge maître-esclave. Ainsi que plusieurs transporteurs différents peuvent être connectés simultanément.

  • Support d'interfaces: Le mélange de T1/E1/J1 ont été pris en charge.

  • Ligne de coding : HDB3 / AMI / B8ZS

  • Frame format : CRC4 / non-CRC4 / ESF / D4T1 / E1

  • HDLC traitement: Indépendant du matériel émetteur HDLC

  • L'optimisation du pilote: précisément l'optimisation du volume de transmission de données dans les pilotes de haut.

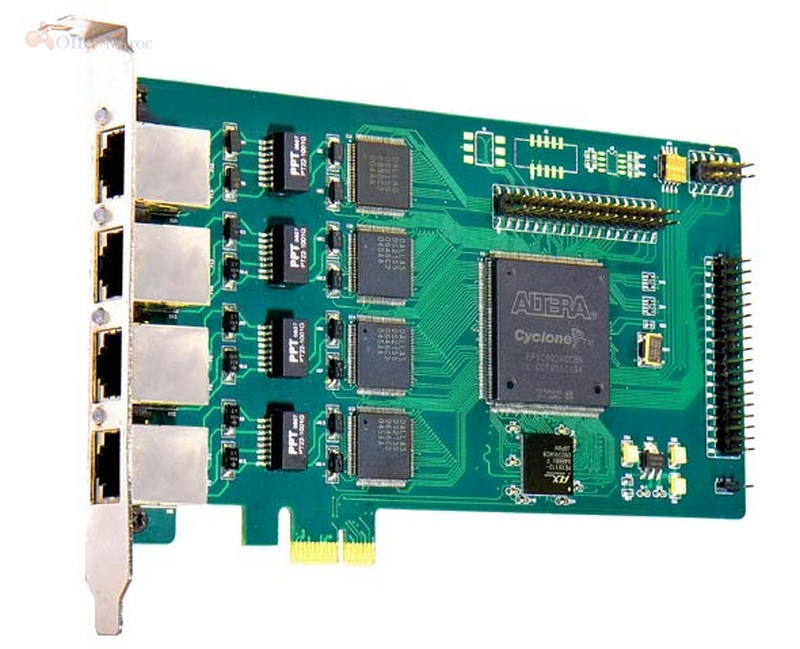

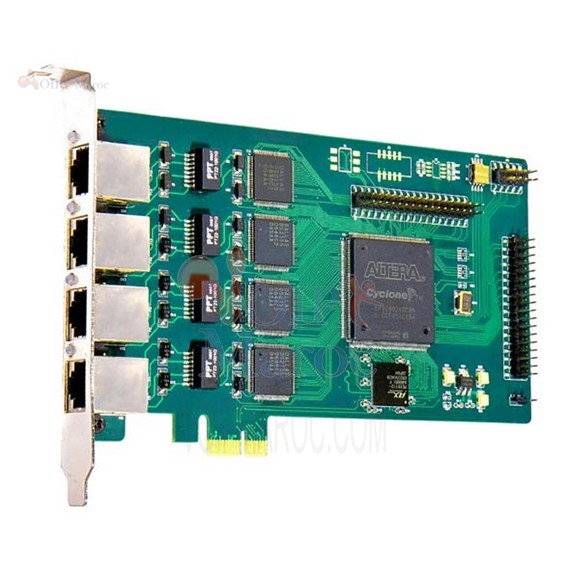

PCI Digital Telephony Cards

Product Name

4-Ports Digital Telephony card

Model

ZD4PE-E

Interface

E1/T1/J1

Channels

4

Echo Cancellor

Support (optionel)

BUS

PCI 2.2 3.5/5V





  • Cette série offre full-duplex des données de carte de téléphone avec une 6.384M taux de transfert ou de 120 canaux de communications vocales. Chaque machine peut supporter plusieurs cartes, particulièrement adapté pour le développement des applications basées sur Asterisk.

  • La carte fournit une mine d'encodage en ligne (AMI / BSZS / HDB3), la transformation cadre matériel (CRC4 / non-CRC4 / FSE / D4T1 / E1). Chaque carte offre deux transceiver HDLC indépendante et le soutien de la FISU SS7 émission-réception.

  • La carte offre aussi deux Jitter indépendante atténuateur.a carte réservée slot pour l'annulation d'écho. De classe transporteur CE modules ont été fournis. Le module CE peuvent également offrir l'optimisation de la qualité de la voix.

  • Ces cartes supportant le traitement rich media avec des performances élevées. Toutes les cartes en un seul hôte peut partager la même source d'horloge

  • La carte fournit la transmission 32bits dans les deux esclaves DMA et mode maître. Les données de chaque transmission de DMA peut être ajustée en fonction de la carte mère différente pour atteindre la performance maximale.

  • This series cards including 1 E1 / T1 / J1 interfaces.BL420D is 9.5 CM long, 10 Cm de haut et la conformité avec PCI 2.2 module standard d'interface card.EC peut être insérée dans la fente de la carte pour fournir l'annulation d'écho matérielle.



Le pilote d'optimisation ont été fournies et a passé nos tests rigoureux ..

Technical Specifications

Digital Telephony Card Technical Specifications

Size

9.5*10CMHalf-length standard industry pci card. Weight 200g

Configure

BL220D/BL220DE – Dual span E1/T1/J1

PCI

Auto adaptive to 5v and 3.3v PCI 2.2 bus. Auto configuration and compatiable with popular mianboards.

32bits,132M bytes/sec DMA transmission  and supporting both slave and master mode.DMA transmission can be optimized according to mianboard.

PCIe

Support PCI Express 1*X,4*X,8*X,16*X

PHY

RJ45 120/75Ω DSX-1/CSU-1 Line-buildouts

Framer

Two Standalone framer to process receive and transmit frame. Supporting Frame formats:CRC4/non-CRC4/ESF/D4T1/E1

Automatic produce DS1 idle code. Supporting T1.403-1998.Producing and checking RAI-CI/AIS-CI/RAI.

RCL,RLOS,RRA,RAIS warning interrupt

Standards

ANSI: T1.403-1995, T1.2311993, T1.408
AT&T: TR54016, TR62411
ITU: G.703, G.704, G.706, G.736, G.775, G.823, G.932, I.431, O.151, Q.161
ITU-T: Recommendation I.432
03/93 B-ISDN User-Network InterfacePhysical Layer
Specification
ETSI: ETS 300 011, ETS 300 166, ETS 300 233, CTR12, CTR4
Japanese: JTG.703, JTI.431, JJ-20.11 (CMI Coding Only)

Environment

Temperature range:0 50C

Leds

One tri-colors led for every interface.Total leds: 4




Quality Assurance

FCC Part 15 Class A, FCC Part 68, EC

ISO 9002

Five years parts and labor

Moyenne des revuesAverage Rating 3
