OpenVox SWG-1016G - Passerelle 16 Ports GSM VoIP GSM Gateway 16 GSM Channels

Chargement...Chargement...
-29%
VoIP GSM Gateway 4 a 16 GSM Channels SWG-1016G

Prix Normal : 18 999,00 Dh HT

Votre Prix :13 499,00 Dh HT

16 198,80 Dh TTC

Economie : 5 500,00 Dh - 29%

Passerelle GSM de 16 Ports SIP,16 GSM Channels, Quad-Band GSM/GPRS 850/ 900/1800/1900 MHz,G.711A, G.711U, G.729, G.722, G.726, iLBC, GSM,WEB,IMEI

Disponibilité : En Arrivage
Evaluation :
  • VoIP GSM Gateway 4 a 16 GSM Channels SWG-1016G
  • /images/Products/SWG-1016G-1_156a2e9b-79ce-4a4f-9bb5-8bb29abee248.jpg
  • /images/Products/SWG-1016G-2_eeb4aa7a-c653-4666-ad01-034b07643e06.jpg
  • /images/Products/SWG-1016G-3_7f96636a-db3d-4c36-8334-b15c2fb27876.jpg
  • /images/Products/SWG-1016G-4_9cee2352-3c9d-4628-82fa-e15c22684ecf.jpg
Product Spotlight

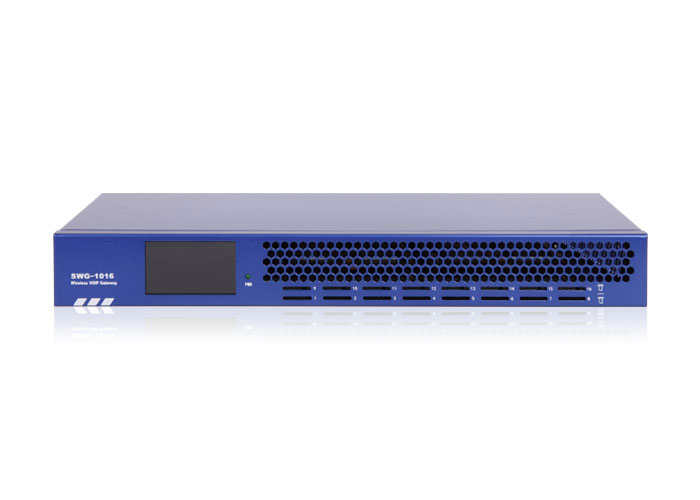

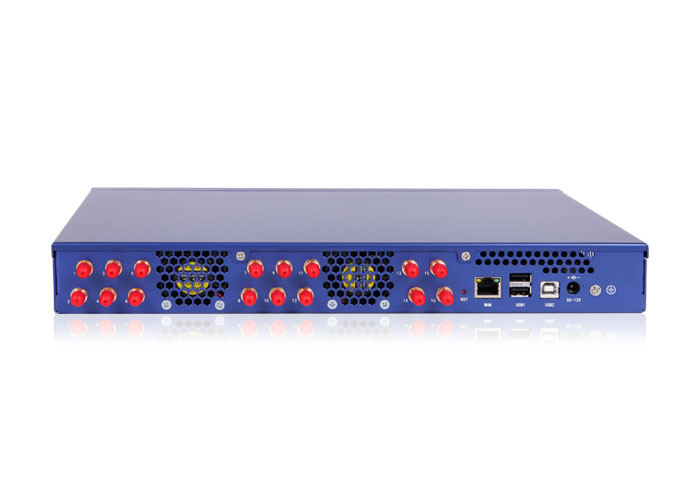

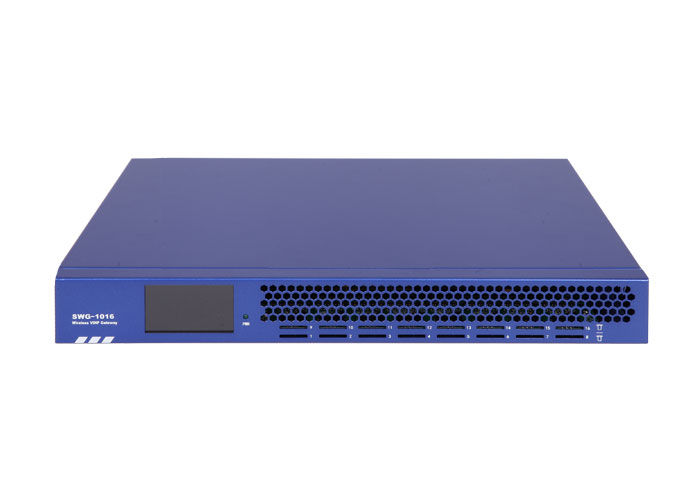

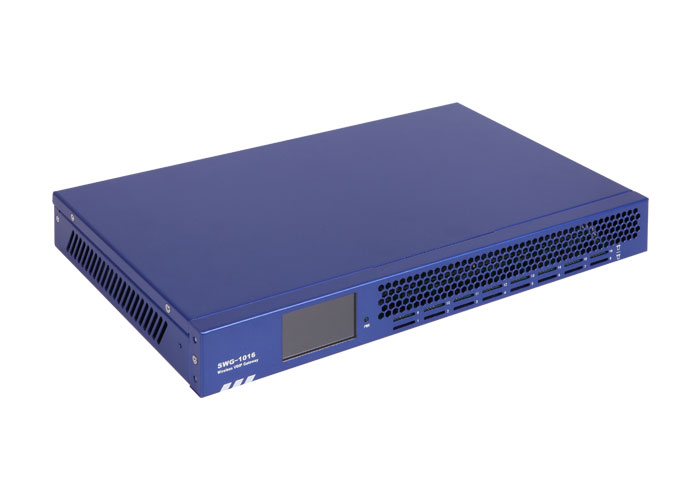

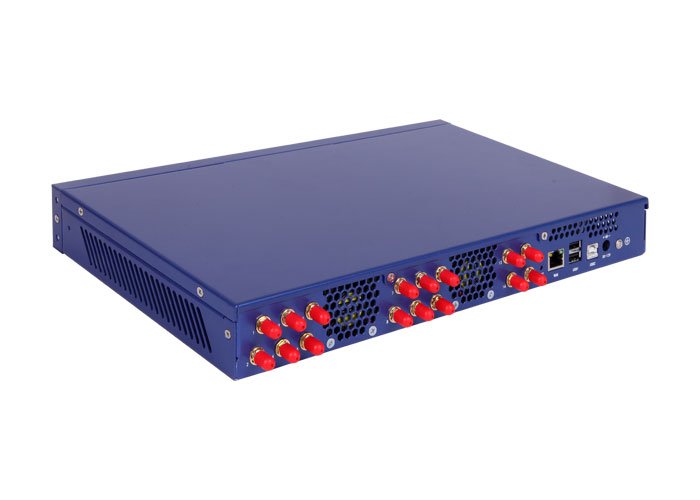

OpenVox SWG-1016G gateway supports 16 GSM Channels and 1 Ethernet interface, And the band is 850/900/1800/1900 MHz.

SWG-1016G gateway supports multiple codecs, including G.711U, G.711A, GSM, G.722, G.723, G.726, G.729 multiple coding. The GSM gateway will be 100% compatible with Asterisk, FreePBX, Elastix, Trixbox, 3CX, FreeSWITCH SIP server and VOS VoIP operating platform. It can help users reduce telecommunications and communication costs.

Technical Specifications
  • 16 GSM Channels
  • 1 SIM card per GSM channel
  • 1 10/100M LAN interfaces
  • 16 Standard SMA-K interfaces
  • LCD dimension:2.4"
  • LCD resolution ratio: 240*400
  • Storage temperature range: -20~70℃
  • Operation temperature range: 0~40℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source: 12V DC/2.33A
  • Power: 36W
  • Dimension: 36cm*21cm*4.44cm
  • Weight: 1.544Kg
  • Compatible with Asterisk, Elastix, FreePBX, 3CX, FreeSWITCH Sip Server



System Features
  • Abundant Codecs:G.711U,G.711A,GSM,G.722,G.723,G.726,G.729
  • Simple and convenient configuration via Web GUI
  • Firmware Update by HTTP
  • Automatically Reboot
  • Support DISA
  • Mutiple Detailed LOG Output
  • Call Status Display
  • Mobile number portability(MNP)
  • CDR
  • Support Configuration files backup and upload
  • Support for Custom scripts, diaplans
  • Restore Factory Settings
VoIP Characters
  • Support SIP, IAX2 Protocol
  • Add, Modify & Delete SIP/IAX2 Trunk
  • SIP/IAX2 Registration with Domain
  • DTMF Mode:RFC2833/Inband/SIPInfo
  • Multiple SIP/IAX2 Registrations modes

GSM Features
  • CallerID Display & Hide
  • GSM :850/900/1800/1900 MHz
  • Real Open API Protocol
  • Call Duration Limitation
  • SMSC/SMS/USSD
  • PIN Identification
  • Voice Codec
  • Ports Group Management
  • SMS Remotely Controlling Gateway
  • SMS Bulk Transceiver, Sent to Email and Auto- Matically Resend
  • SMS Forwarding and Quick Reply
Network
  • IPv4,UDP/TCP,DHCP,TELNET,HTTP/HTTPS,TFTP
  • HTTP/SSH(Optical Telnet)
  • Ping & Traceroute Command on the Web
  • Simple Security Strategy: white list, black list, security rules

Téléchargements


iconSWG1016_Gateway_Datasheet.pdfTélécharger
iconSWG_1016_Gateway_User_Manual.pdfTélécharger

Login: admin
Mot de passe: admin
Cliquez ic pour une demonstration en ligne
