Sangoma S500 - Téléphone IP 4 Comptes SIP Ecran Couleur LED 3,5" Ports Gigabit Ethernet
 Chargement...
Chargement...  Fiche Technique
Description du Produit

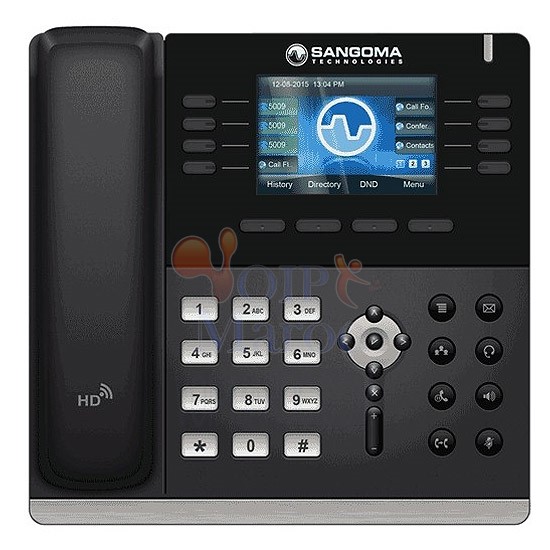

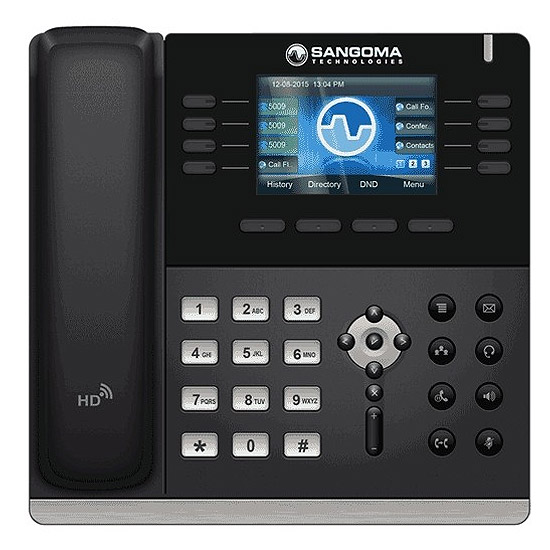

The Sangoma s500 IP Phone is so smart you can quickly and easily use them
right out of the box. Each phone in the series features industry standard Power
over Ethernet, so no power cable or outlets required. They have full duplex
speakerphones, dual Ethernet Ports, multi-way conference calling, high
definition voice quality, and they’re Virtual Private Network (VPN) capable.
Full Integration with FreePBX
FreePBX phone apps are available right on the phone, straight out of the box
with no requirement for additional licenses. Users can control complicated
features directly from their phones. There’s no need to remember feature codes.
User applications include: Call Parking, Follow Me, Do Not Disturb, Conference
Rooms, Call Forwarding, Time Conditions, Presence, Queues, Transfer to Voice
Mail, Visual Voice Mail, and Log in/out.
Why is Sangoma Zero Touch Better?
VoIP telephones can be complex to install, and manually configuring many
different parameters and hundreds of extensions can take hours. When you buy and
install your Sangoma IP phones, the redirection server automatically points the
phone to the Sangoma FreePBX for configuration. Other vendors have redirection
servers, but they have to be programmed with the details of the IP PBX. Only
Sangoma can provide Zero Touch provisioning with FreePBX.
EndPoint Manager Included
When using a Sangoma phone, EndPoint Manager software inside FreePBX is
automatically enabled. This lets your users control global settings, program
their phone keys, map extensions, upload images, download new firmware, and much
more.
Spécifications Techniques
Phone Features
4 SIP accounts
Call hold, mute, DND (Do Not Disturb)
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Redial, call return, auto answer
5-way conferencing
Direct IP call
Ring tone selection/provisioning
Set date time automatically or manually
Dial plan per account
RTCP-XR (RFC3611),
VQ-RTCPXR
(RFC6035)
XML Browser
Action URL/URI
Voice Codecs Features
HD voice: HD handset, HD speaker
Codecs: iLBC, G.722,
G.711(A/μ), GSM_FR,
G.723, G.729AB,
G.726-32
DTMF: In-band, RFC 2833, SIP INFO
Full-duplex handsfree speakerphone with AEC (Acoustic Echo Cancellation)
Voice Activity Detection (VAD)
Auto Gain Control (AGC)
Comfort Noise Generation (CNG)
Acoustic Echo Cancellation (AEC)
Packet Loss Concealment (PLC)
Adaptive Jitter Buffer (AJB)
IP-PBX Features
Busy Lamp Field (BLF)
Anonymous call, anonymous call rejection
Message Waiting Indicator (MWI).
Voice mail
Intercom, paging
Call park, call pickup
Music on hold
Display and Indicator
3.5” 480 x 320-pixel color display with backlight
16 bit depth color
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Wallpaper
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number and photo
Feature Keys
8 line keys with LED
8 line keys can be programmed up to 28 various features (4-page view)
8 features keys: voice mail, headset, speaker, hold, mute, transfer, call list, conference
4 context-sensitive “soft” keys
6 navigation keys
Volume control keys
Illuminated speaker key
Illuminated headset key
Illuminated mute ke
Interface
Dual-port Gigabit Ethernet
Power over Ethernet (IEEE 802.3af), class 3
1xRJ9 (4P4C) handset port
Supports up to 6 Expansion Modules
Physical Features
Stand with 3 adjustable angles
Wall mountable
External universal
AC adapter : AC
100~240V input and
DC 5V/1.2A output
Power consumption (PSU): 2.0~4.6W
Power consumption (PoE): 2.5~5.5W
Operating humidity: 10~95%
Operating temperature: -10~50°C
Management
Configuration: browser/LCD-Menu/ auto-provision
Auto provision via
HTTP/HTTPS
FTP/TFTP
Auto-provision with PnP
Reset to factory, restart, reboot
Local tracing log export, system log
Phone lock for personal privacy protection
Network and Security
SIP v1 (RFC2543), v2 (RFC3261)
SIP server/proxy redundancy
NAT Traversal: STUN mode
DHCP/static/PPPoE
HTTP/HTTPS web server
Time and date synchronization by SNTP
DNS-NAPTR/DNSSRV (RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
IEEE802.1X
TLS (Transport Layer Security)
SRTP
Open VPN
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
-
